  • YG-1 P15151 SERIES 1.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

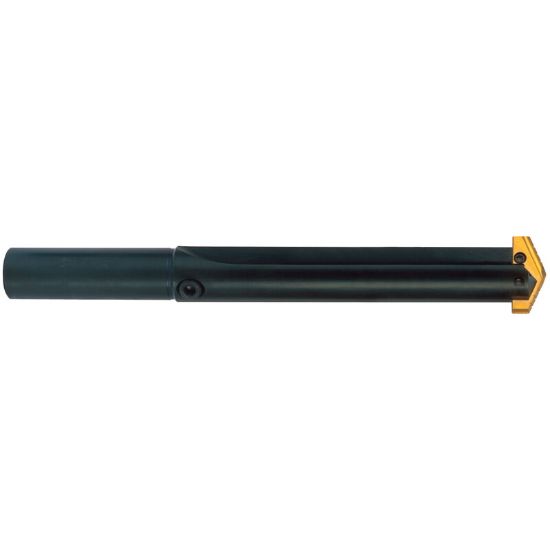

Picture of YG-1 P15151 SERIES 1.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

YG-1 P15151 SERIES 1.5 Straight Shank & Straight Flute Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P15151
Delivery date: 3-5 days
$208.92

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 6.6250 168.28MM
Cut Dia Max 0.9375 23.81MM
Overall Len 10.8750 276.23MM
Cutter Dia 0.8594 21.83MM - 55/64
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 2
Cut Dia Min 0.8594 21.83MM - 55/64
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
