  • YG-1 P14253 SERIES 2.5 Straight Shank & Straight Flute Medium Length Spade Drill Holder

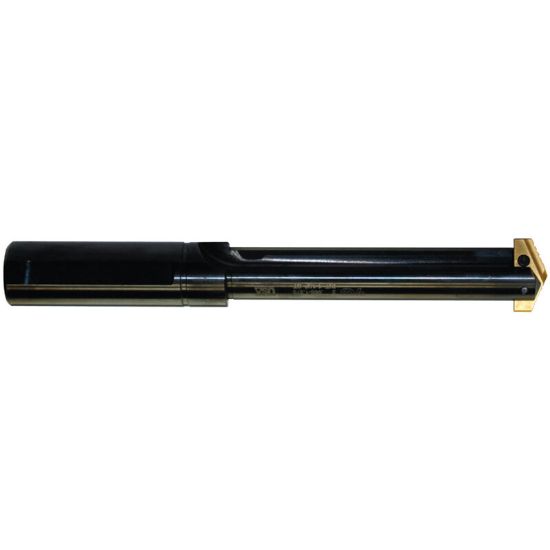

Picture of YG-1 P14253 SERIES 2.5 Straight Shank & Straight Flute Medium Length Spade Drill Holder

YG-1 P14253 SERIES 2.5 Straight Shank & Straight Flute Medium Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P14253
Delivery date: 3-5 days
$248.88

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Single Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Overall Len 10.0000 254.00MM
Flute Length 5.3750 136.53MM
Cut Dia Max 1.3750 34.93MM
Shank/Pilot Dia 1.1875 30.16MM - 1-3/16
Machine Side Connection Size 1.1875 30.16MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 1.1875 30.16MM - 1-3/16
Cutter Dia 1.1875 30.16MM - 1-3/16
Tool Material Steel
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
