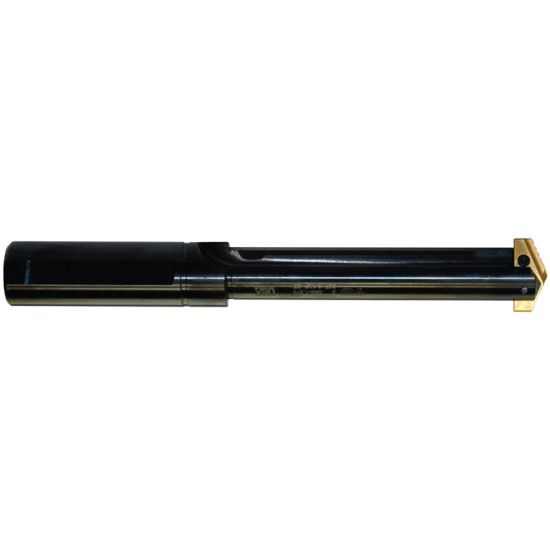

Picture of YG-1 P14203 SERIES 2 Straight Shank & Straight Flute Medium Length Spade Drill Holder

YG-1 P14203 SERIES 2 Straight Shank & Straight Flute Medium Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P14203
Delivery date: 3-5 days
$224.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 1.3750 34.93MM
Shank/Pilot Dia 0.9688 24.61MM - 31/32
Cut Dia Min 0.9688 24.61MM - 31/32
Overall Len 10.0000 254.00MM
Flute Length 5.3750 136.53MM
Tool Material Steel
Machine Side Connection Size 0.9688 24.61MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.9688 24.61MM - 31/32
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
