  • YG-1 P14152 SERIES 1.5 Straight Shank & Straight Flute Medium Length Spade Drill Holder

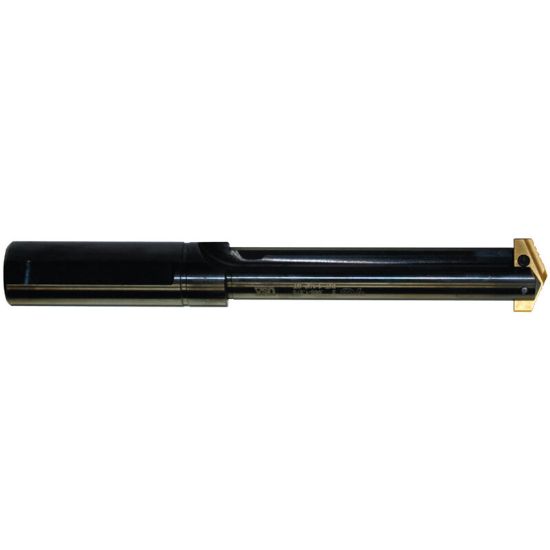

Picture of YG-1 P14152 SERIES 1.5 Straight Shank & Straight Flute Medium Length Spade Drill Holder

YG-1 P14152 SERIES 1.5 Straight Shank & Straight Flute Medium Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P14152
Delivery date: 3-5 days
$224.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Spade Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Min 0.8594 21.83MM - 55/64
Machine Side Connection Type Boring Bar,Weldon
Flute Length 4.6250 117.48MM
Cutter Dia 0.8594 21.83MM - 55/64
Tool Material Steel
Machine Side Connection Size 0.8594 21.83MM
Shank/Pilot Dia 0.8594 21.83MM - 55/64
Cut Dia Max 0.9375 23.81MM
Overall Len 8.8750 225.43MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
