  • YG-1 P13708 SERIES 7 Straight Shank & Straight Flute Short Length Spade Drill Holder

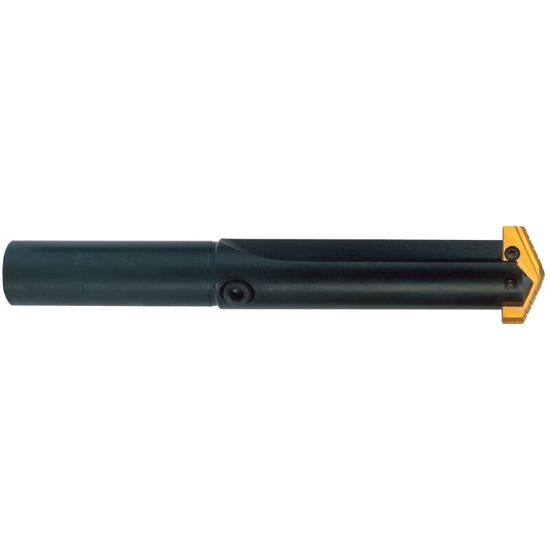

Picture of YG-1 P13708 SERIES 7 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13708 SERIES 7 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13708
Delivery date: 3-5 days
$548.71

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Spade Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Cut Dia Min 3.5313 89.70MM - 3-17/32
Machine Side Connection Size 3.0000 76.20MM
Cut Dia Max 4.5000 114.30MM - 4-1/2
Cutter Dia 3.5313 89.70MM - 3-17/32
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 3.0000 76.20MM - 3
Flute Length 6.7500 171.45MM
Overall Len 13.8750 352.43MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Multi Spindle Yes
