  • YG-1 P13405 SERIES 4 Straight Shank & Straight Flute Short Length Spade Drill Holder

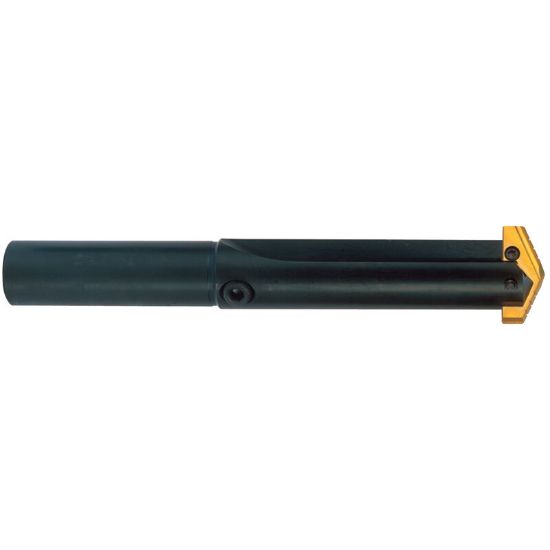

Picture of YG-1 P13405 SERIES 4 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13405 SERIES 4 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13405
Delivery date: 3-5 days
$268.41

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 2.5625 65.09MM - 2-9/16
Flutes/Inserts 2
Cutter Dia 1.9063 48.42MM - 1-29/32
Flute Length 5.1250 130.18MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Cut Dia Min 1.9062 48.42MM - 1-29/32
Machine Side Connection Size 0.7500 19.05MM
Overall Len 10.5000 266.70MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
