  • YG-1 P13304 SERIES 3 Straight Shank & Straight Flute Short Length Spade Drill Holder

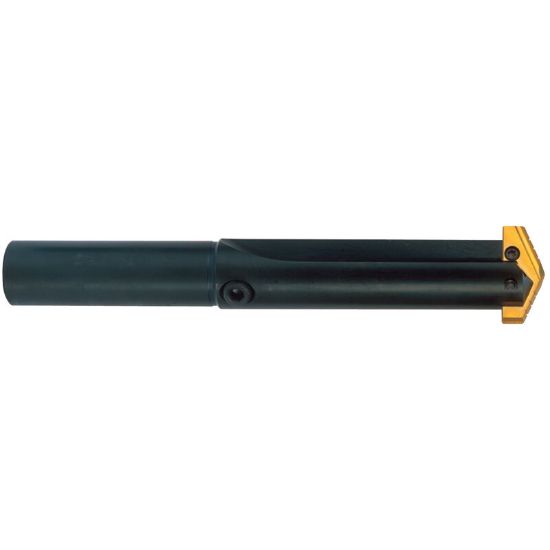

Picture of YG-1 P13304 SERIES 3 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13304 SERIES 3 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13304
Delivery date: 3-5 days
$220.81

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flute Length 4.7500 120.65MM
Overall Len 10.0000 254.00MM
Machine Side Connection Size 1.5000 38.10MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 1.4062 35.72MM - 1-13/32
Cutter Dia 1.4062 35.72MM - 1-13/32
Cut Dia Max 1.8750 47.63MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
