  • YG-1 P13303 SERIES 3 Straight Shank & Straight Flute Short Length Spade Drill Holder

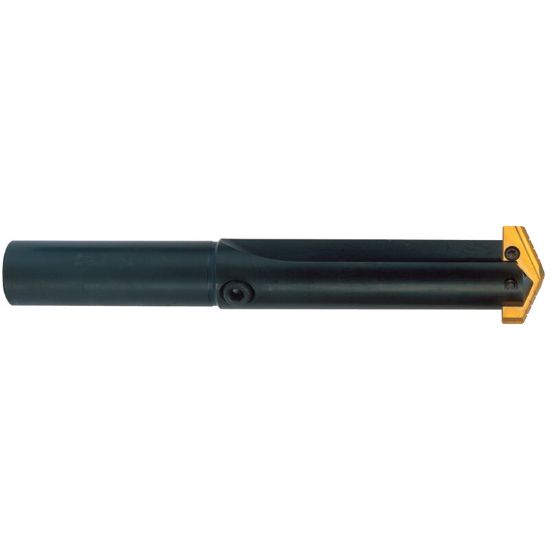

Picture of YG-1 P13303 SERIES 3 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13303 SERIES 3 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13303
Delivery date: 3-5 days
$220.81

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 4.7500 120.65MM
Cutter Dia 1.4062 35.72MM - 1-13/32
Cut Dia Min 1.4062 35.72MM - 1-13/32
Overall Len 10.0000 254.00MM
Tool Material Steel
Flutes/Inserts 2
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 1.8750 47.63MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
