  • YG-1 P13253 SERIES 2.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

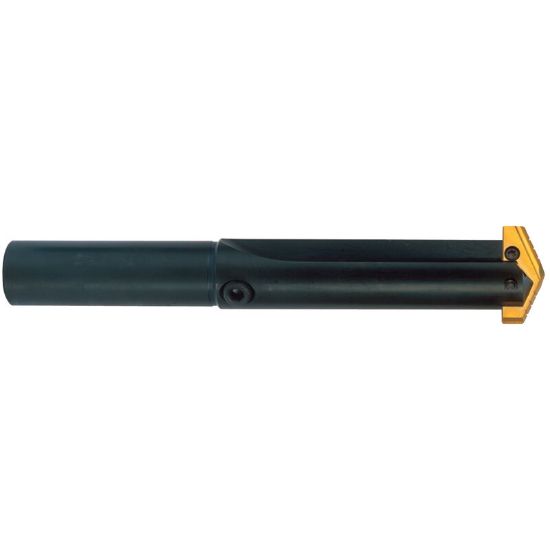

Picture of YG-1 P13253 SERIES 2.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13253 SERIES 2.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13253
Delivery date: 3-5 days
$218.17

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling, Spade Drilling
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cut Dia Min 1.1875 30.16MM - 1-3/16
Cut Dia Max 1.3750 34.93MM
Cutter Dia 1.1875 30.16MM - 1-3/16
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 3.3750 85.73MM
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Aerospace Yes
Mold Yes
