  • YG-1 P13203 SERIES 2 Straight Shank & Straight Flute Short Length Spade Drill Holder

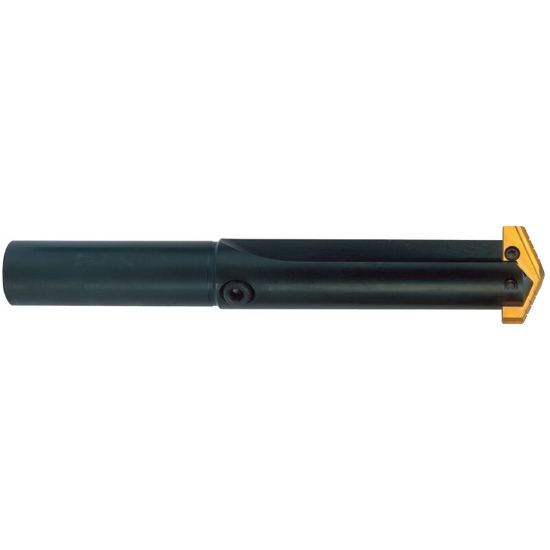

Picture of YG-1 P13203 SERIES 2 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13203 SERIES 2 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13203
Delivery date: 3-5 days
$194.37

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 1.3750 34.93MM
Overall Len 8.0000 203.20MM
Cut Dia Min 0.9688 24.61MM - 31/32
Cutter Dia 0.9688 24.61MM - 31/32
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 3.3750 85.73MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
