  • YG-1 P13152 SERIES 1.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

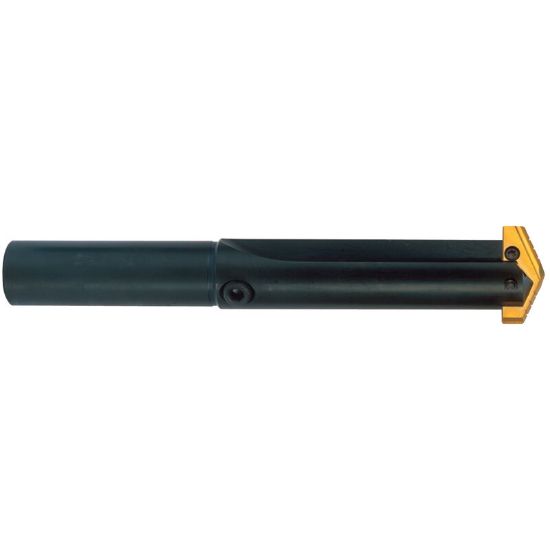

Picture of YG-1 P13152 SERIES 1.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13152 SERIES 1.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13152
Delivery date: 3-5 days
$194.37

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Spade Drilling, Drilling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.8594 21.83MM - 55/64
Cut Dia Min 0.8594 21.83MM - 55/64
Tool Material Steel
Overall Len 6.8750 174.63MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.9375 23.81MM
Machine Side Connection Size 1.0000 25.40MM
Flute Length 2.6250 66.68MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
