  • YG-1 P13102 SERIES 1 Straight Shank & Straight Flute Short Length Spade Drill Holder

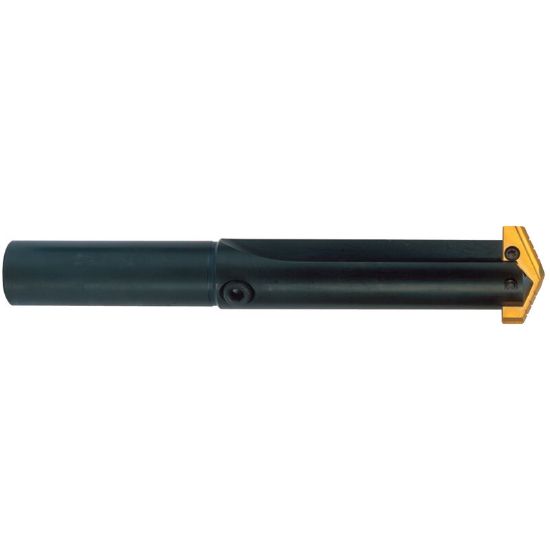

Picture of YG-1 P13102 SERIES 1 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13102 SERIES 1 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13102
Delivery date: 3-5 days
$179.83

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Spade Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.7031 17.86MM - 45/64
Cut Dia Max 0.9375 23.81MM
Flute Length 2.6250 66.68MM
Tool Material Steel
Overall Len 6.8750 174.63MM
Cutter Dia 0.7031 17.86MM - 45/64
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
