  • YG-1 P13051 SERIES 0.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

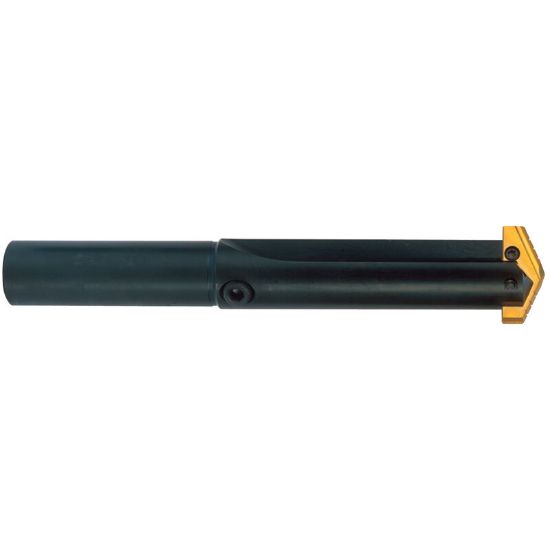

Picture of YG-1 P13051 SERIES 0.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13051 SERIES 0.5 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13051
Delivery date: 3-5 days
$173.23

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling, Spade Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 0.6094 15.48MM - 39/64
Tool Material Steel
Overall Len 4.5625 115.89MM
Cut Dia Max 0.6875 17.46MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 1.3750 34.93MM
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.6094 15.48MM - 39/64
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
