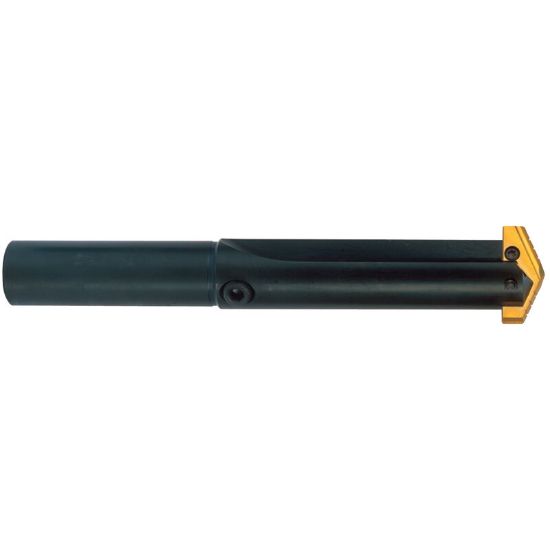

Picture of YG-1 P13001 SERIES 0 Straight Shank & Straight Flute Short Length Spade Drill Holder

YG-1 P13001 SERIES 0 Straight Shank & Straight Flute Short Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P13001
Delivery date: 3-5 days
$173.23

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Max 0.6875 17.46MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Overall Len 4.5625 115.89MM
Cut Dia Min 0.5156 13.10MM - 33/64
Flutes/Inserts 2
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.5156 13.10MM - 33/64
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 1.3750 34.93MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
Multi Spindle Yes
Agricultural YES
