  • YG-1 P08153 Series 1.5 Taper Shank & Helical Flute Medium Length Spade Drill Holder

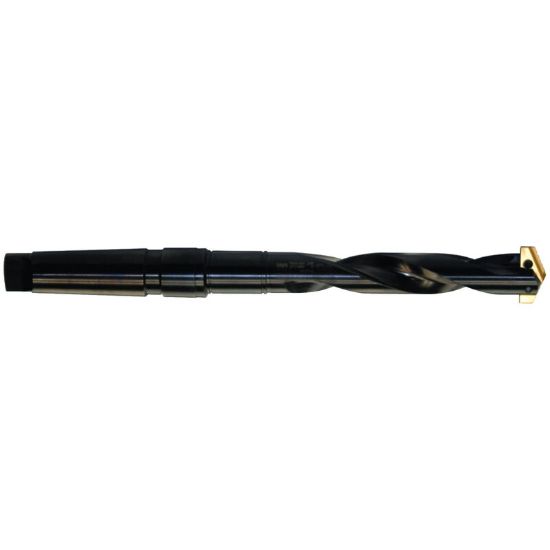

Picture of YG-1 P08153 Series 1.5 Taper Shank & Helical Flute Medium Length Spade Drill Holder

YG-1 P08153 Series 1.5 Taper Shank & Helical Flute Medium Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P08153
Delivery date: 3-5 days
$248.88

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.8594 21.83MM - 55/64
Cut Dia Max 0.9375 23.81MM
Machine Side Connection Size 3
Machine Side Connection Type Morse
Flutes/Inserts 2
Flute Length 5.8750 149.23MM
Overall Len 11.1563 283.37MM
Cut Dia Min 0.8594 21.83MM - 55/64
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
