  • YG-1 P08103 Series 1 Taper Shank & Helical Flute Medium Length Spade Drill Holder

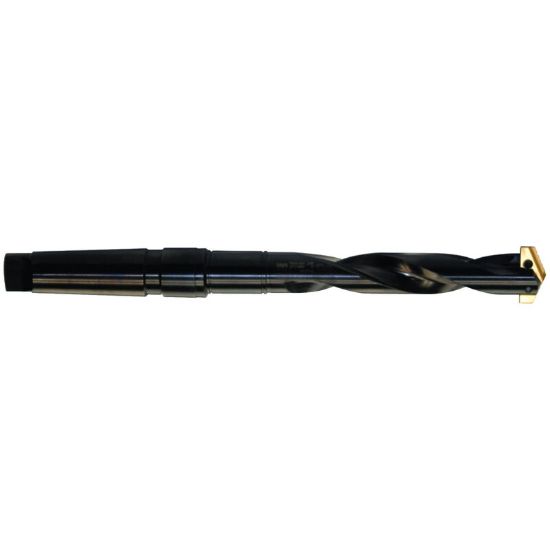

Picture of YG-1 P08103 Series 1 Taper Shank & Helical Flute Medium Length Spade Drill Holder

YG-1 P08103 Series 1 Taper Shank & Helical Flute Medium Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P08103
Delivery date: 3-5 days
$230.23

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Single Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7031 17.86MM - 45/64
Cut Dia Max 0.9375 23.81MM
Machine Side Connection Size 3
Overall Len 11.1563 283.37MM
Flute Length 5.8750 149.23MM
Cutter Dia 0.7031 17.86MM - 45/64
Tool Material Steel
Machine Side Connection Type Morse
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
