  • YG-1 P03304 SERIES 3 Taper Shank & Straight FLT Standard Length Spade Drill Holder

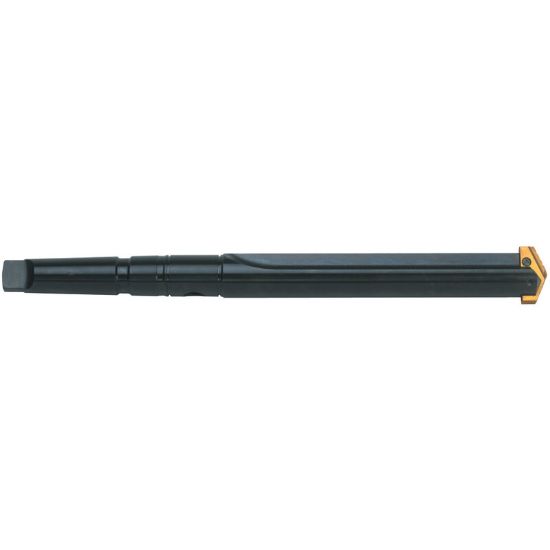

Picture of YG-1 P03304 SERIES 3 Taper Shank & Straight FLT Standard Length Spade Drill Holder

YG-1 P03304 SERIES 3 Taper Shank & Straight FLT Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P03304
Delivery date: 3-5 days
$270.17

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Drilling, Single Insert Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 1.8750 47.63MM
Machine Side Connection Type Morse
Flutes/Inserts 2
Flute Length 9.5000 241.30MM
Tool Material Steel
Cut Dia Min 1.4062 35.72MM - 1-13/32
Machine Side Connection Size 4
Cutter Dia 1.4062 35.72MM - 1-13/32
Overall Len 16.0625 407.99MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
