  • YG-1 P03103 SERIES 1 Taper Shank & Straight FLT Standard Length Spade Drill Holder

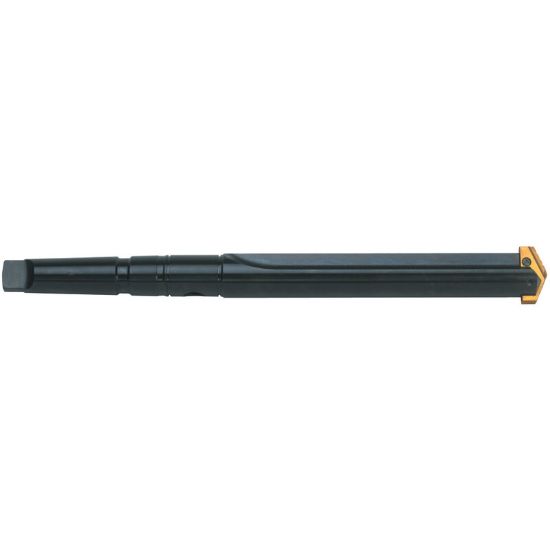

Picture of YG-1 P03103 SERIES 1 Taper Shank & Straight FLT Standard Length Spade Drill Holder

YG-1 P03103 SERIES 1 Taper Shank & Straight FLT Standard Length Spade Drill Holder

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1P03103
Delivery date: 3-5 days
$214.19

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Spade Drilling, Drilling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7031 17.86MM - 45/64
Machine Side Connection Type Morse
Flutes/Inserts 2
Flute Length 7.8750 200.03MM
Cut Dia Min 0.7031 17.86MM - 45/64
Cut Dia Max 0.9375 23.81MM
Machine Side Connection Size 3
Tool Material Steel
Overall Len 13.1563 334.17MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
