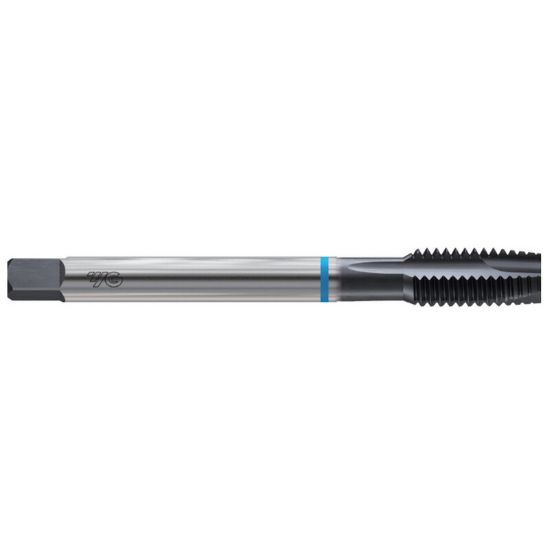

YG-1 N4545 7/16-20.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-N4545
Delivery date: 3-5 days
$29.88

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Limit H5/GH5
Thread Type NF/UNF/UNEF
Thread Pitch 20.00TPI
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Tap Type Plug
Shank/Pilot Dia 0.3230 8.20MM - P
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
