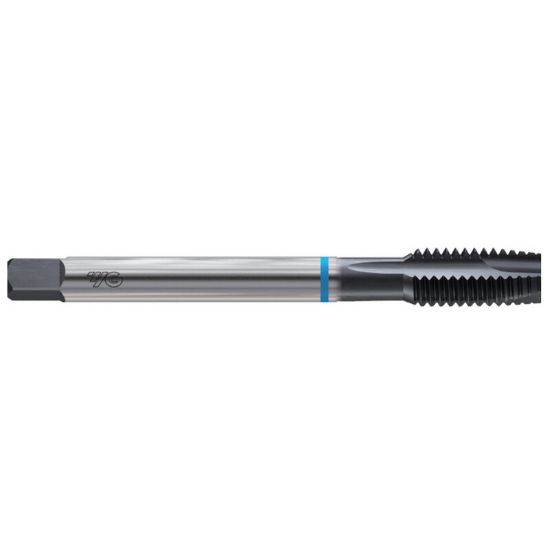

YG-1 N3203 M3-0.50MM Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-N3203
Delivery date: 3-5 days
$17.61

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Coating Steam Oxide
Dimensional Specifications
Thread Size M3
Thread Limit D3
Tool Material Steel
Tap Chamfer 4P-5P
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Tap Square 0.1100
Length Type Standard
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Thread Type Metric
Overall Len 2.2050 56.01MM
Tap Type Plug
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
