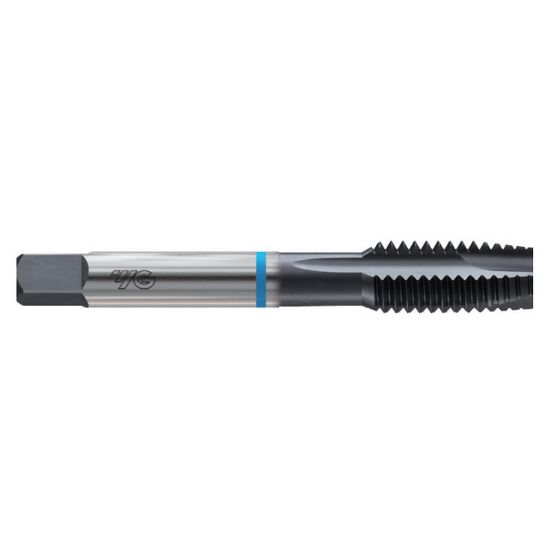

YG-1 M9543 7/16-20.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-M9543
Delivery date: 3-5 days
$22.88

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Coating Steam Oxide
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Overall Len 3.1560 80.16MM
Tap Type Plug
Flutes/Inserts 3
Thread Size 7/16"
Tap Style Cut Spiral Point
Thread Limit H3/GH3
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
