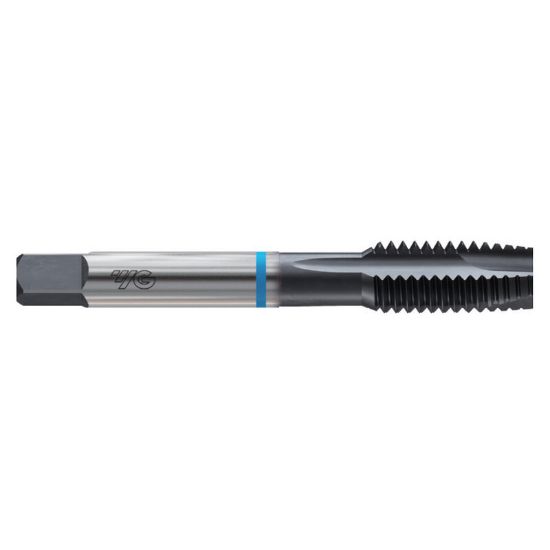

YG-1 M9525 7/16-14.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-M9525
Delivery date: 3-5 days
$22.88

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Tap Square 0.2420
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Shank/Pilot Dia 0.3230 8.20MM - P
Thread Type NC/UNC
Cut Rating <40HRC Steel, Stainless Steel
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
