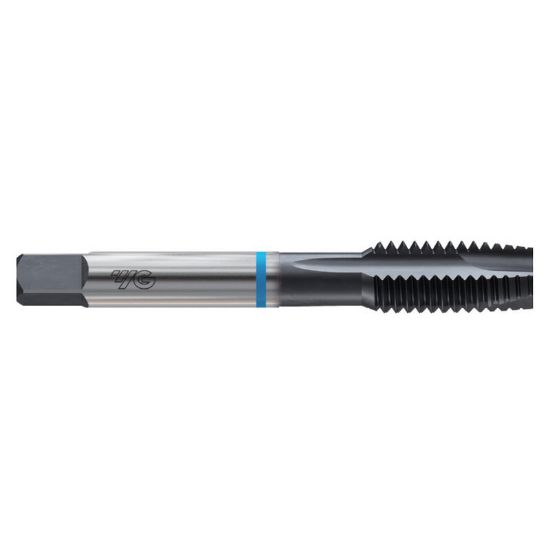

YG-1 M9403 1/4-20.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-M9403
Delivery date: 3-5 days
$13.61

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Package Size 1
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size 1/4"
Tap Type Plug
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
