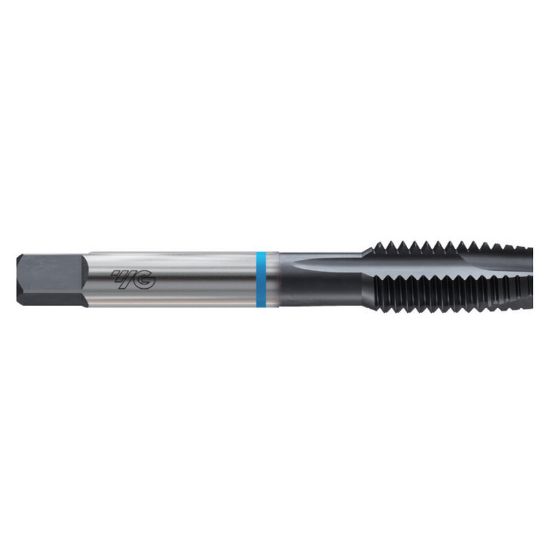

YG-1 M9346 No.10-32.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-M9346
Delivery date: 3-5 days
$11.48

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Illinois
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit H6/GH6
Tap Chamfer 4P-5P
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tool Material Steel
Thread Type NF/UNF/UNEF
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
