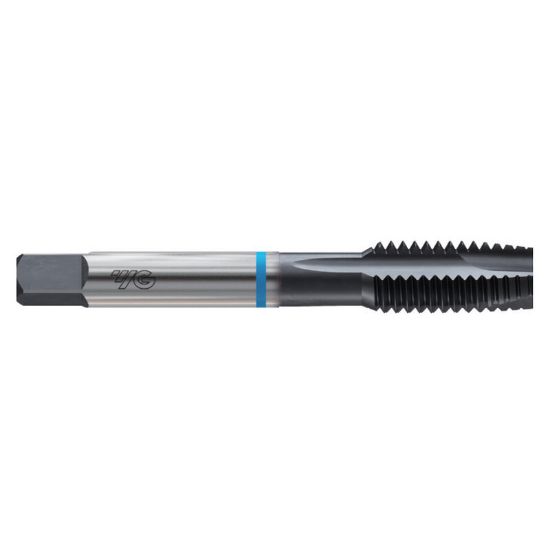

YG-1 M9345 No.10-32.00TPI Cut Spiral Point Plug 4P-5P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-M9345
Delivery date: 3-5 days
$11.48

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Coating Steam Oxide
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Thread Limit H5/GH5
Tap Square 0.1520
Tap Type Plug
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
