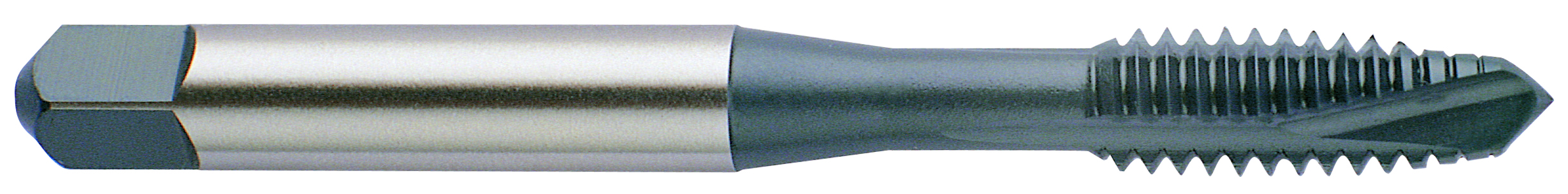

Picture of YG-1 M6605 9/16-12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiCN

YG-1 M6605 9/16-12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiCN

Part Number: YG-M6605
Looking for alternatives…
Find a drill for this tap 9/16" × 12.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163800
Vendor: Sussex Tool and Supply
$93.20

Description

YG-1 M6605 9/16"x12.00TPI Cut Spiral Point Plug 4P-5P P-HSS TiCN H5/GH5 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.5900 91.19MM
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Thread Pitch 12.00TPI
Thread Size 9/16"
Tap Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Square 0.3220
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat P-HSS
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
