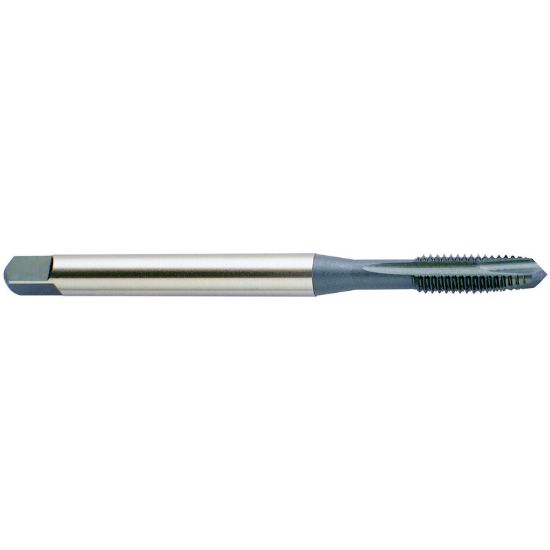

YG-1 M3403 1/4-20.00TPI Cut Spiral Point Plug 4P-5P P-HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-M3403
Delivery date: 3-5 days
$39.63

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 6.0000 152.40MM
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Long
Flutes/Inserts 3
Dimension Standard ANSI/6"
Tap Square 0.1910
Thread Size 1/4"
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
