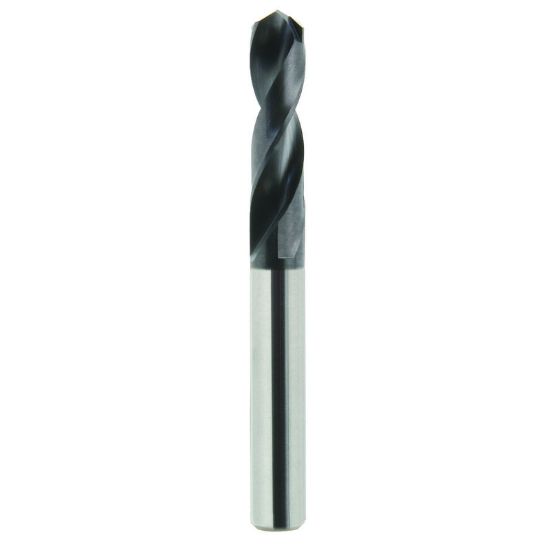

Picture of YG-1 M1700O O HSS-Powder Metal MULTI-1 Drill Stub Length TIALN Coated

YG-1 M1700O O HSS-Powder Metal MULTI-1 Drill Stub Length TIALN Coated

Part Number: YG1M1700O
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1154837
Vendor: Sussex Tool and Supply
$33.56

Description

YG-1 M1700O Powder Metal Drill O HSS-PM MULTI-1 DRILL STUB LENGTH TIALN COATED 135° Powder Metal Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type HSS/Cobalt Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Drill Type Stub Powder Metal
Multi Spindle Yes
Drill Length Type Jobber
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3160 8.03MM - O
Flute Length 1.6880 42.88MM
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Cut Dia Min 0.3160 8.03MM - O
Materials & Finish
Tool Material Powder Metal
Cutting Edge Mat Powder Metal
Coating TiAlN
