  • YG-1 L4503 3/8-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

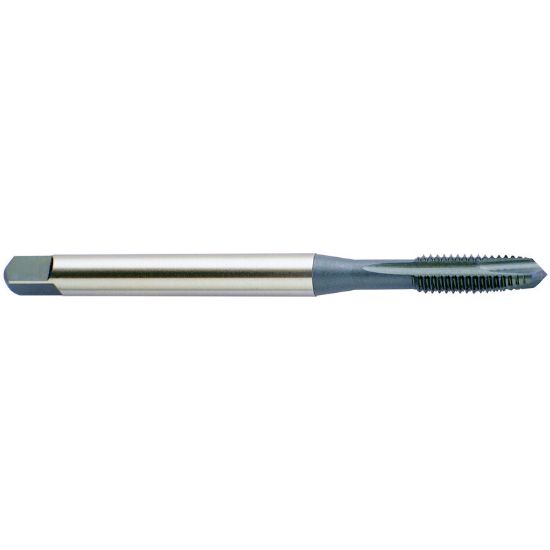

Picture of YG-1 L4503 3/8-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4503 3/8-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L4503
Delivery date: 3-5 days
$13.75

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Thread Size 3/8"
Thread Limit H3/GH3
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Tap Type Plug
Tap Square 0.2860
Overall Len 3.9370 100.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 24.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
