  • YG-1 L4463 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

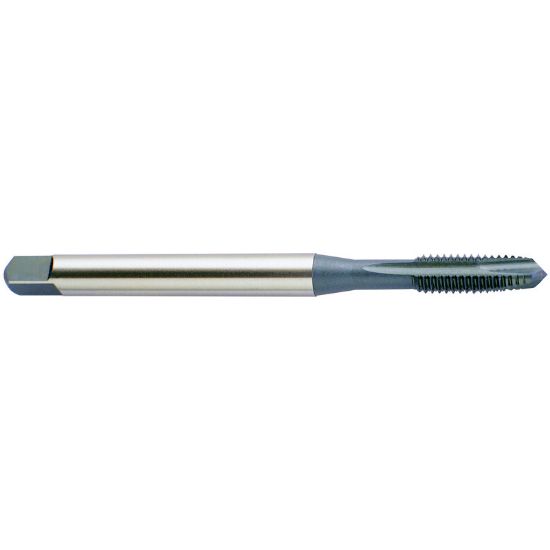

Picture of YG-1 L4463 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4463 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L4463
Delivery date: 3-5 days
$12.17

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Thread Size 5/16"
Length Type Standard
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Tap Chamfer 4P-5P
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Square 0.2380
Tap Type Plug
Thread Limit H3/GH3
Dimension Standard DINSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
