  • YG-1 L4403 1/4-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

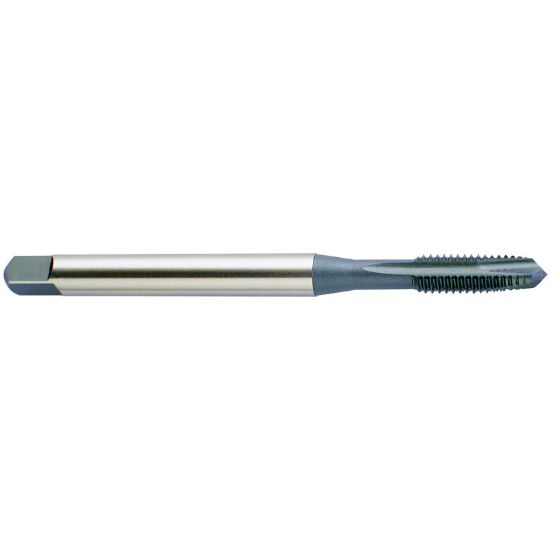

Picture of YG-1 L4403 1/4-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4403 1/4-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L4403
Delivery date: 3-5 days
$9.52

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating General Performance
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Tool Material Steel
Tap Chamfer 4P-5P
Tap Square 0.1910
Length Type Standard
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard DINSI
Thread Size 1/4"
Overall Len 3.1560 80.16MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
