  • YG-1 L4343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

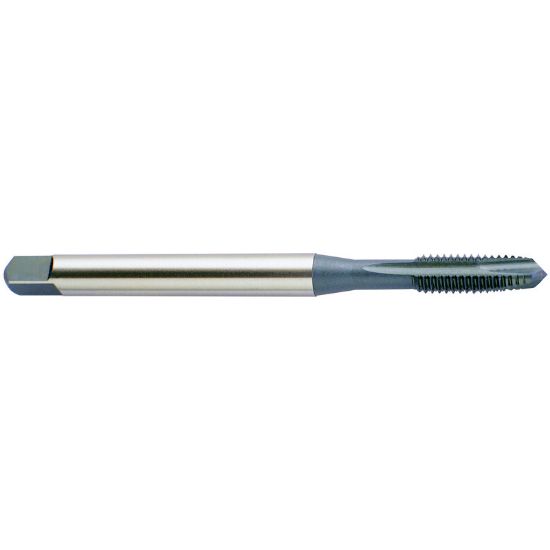

Picture of YG-1 L4343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L4343
Delivery date: 3-5 days
$8.88

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Thread Limit H3/GH3
Dimension Standard DINSI
Length Type Standard
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Cut Rating <25HRC Steel, Stainless Steel
Overall Len 2.7560 70.00MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
