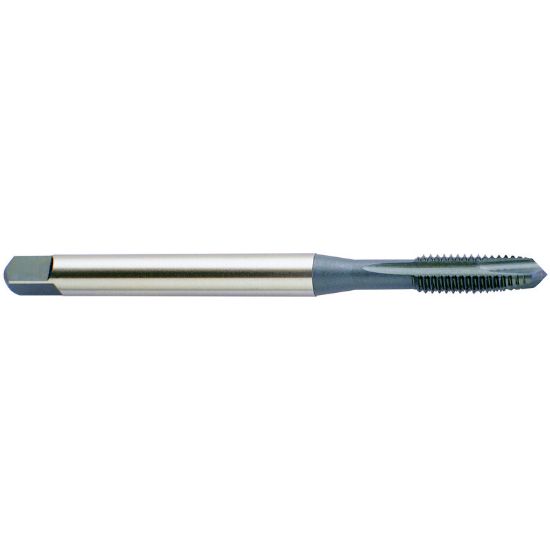

Picture of YG-1 L4323 No.10-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4323 No.10-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L4323
Delivery date: 3-5 days
$8.88

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard DINSI
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Overall Len 2.7560 70.00MM
Thread Pitch 24.00TPI
Tap Square 0.1520
Tap Type Plug
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
