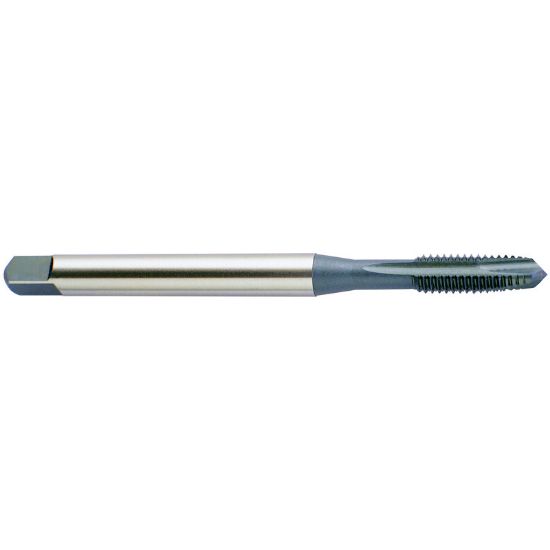

Picture of YG-1 L4202 No.5-40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

YG-1 L4202 No.5-40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L4202
Delivery date: 3-5 days
$10.07

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tool Material Steel
Tap Square 0.1100
Thread Pitch 40.00TPI
Overall Len 2.2050 56.01MM
Cut Rating <25HRC Steel, Stainless Steel
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Tap Chamfer 4P-5P
Thread Size No.5
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard DINSI
Length Type Standard
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
