  • YG-1 L3523 7/16-14.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

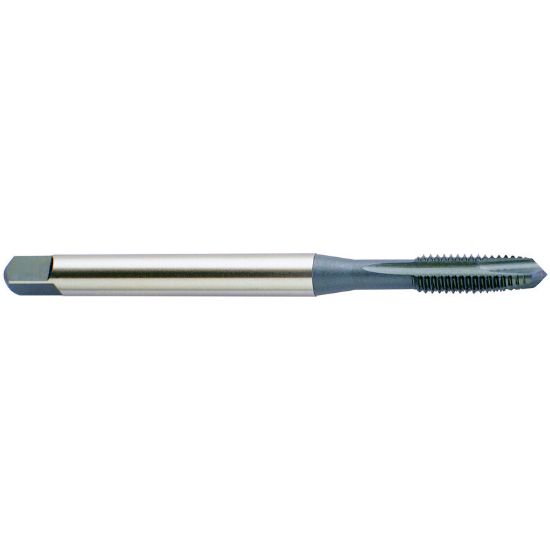

Picture of YG-1 L3523 7/16-14.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

YG-1 L3523 7/16-14.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L3523
Delivery date: 3-5 days
$9.87

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Pitch 14.00TPI
Tap Type Plug
Thread Limit H3/GH3
Overall Len 3.9370 100.00MM
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Thread Size 7/16"
Tap Style Cut Spiral Point
Thread Type NC/UNC
Dimension Standard DINSI
Tool Material Steel
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Square 0.2420
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
