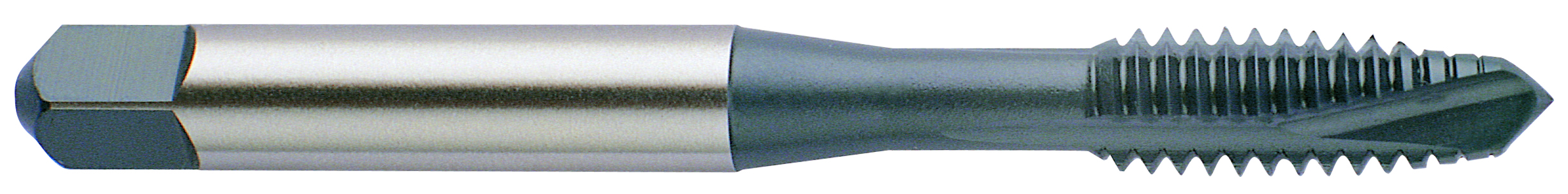

Picture of YG-1 L1162 No.4-40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Hardslick

YG-1 L1162 No.4-40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Hardslick

Part Number: YG-L1162

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1163505
Vendor: Sussex Tool and Supply
$9.59
YG-1 L1162 No.4x40.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Hardslick H3/GH3 NC/UNC Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Coating Hardslick
Overall Length 1.8750 47.63MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Thread Size No.4
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1100
Tap Chamfer 4P-5P
