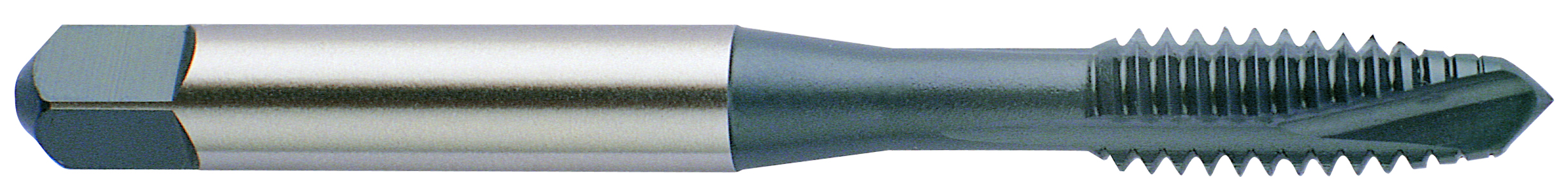

Picture of YG-1 K9423 1/4-28.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

YG-1 K9423 1/4-28.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

Part Number: YG-K9423
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163433
Vendor: Sussex Tool and Supply
$7.43

Description

YG-1 K9423 1/4"x28.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 28.00TPI
Thread Size 1/4"
Tap Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Tap Square 0.1910
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard ANSI/ANSI
