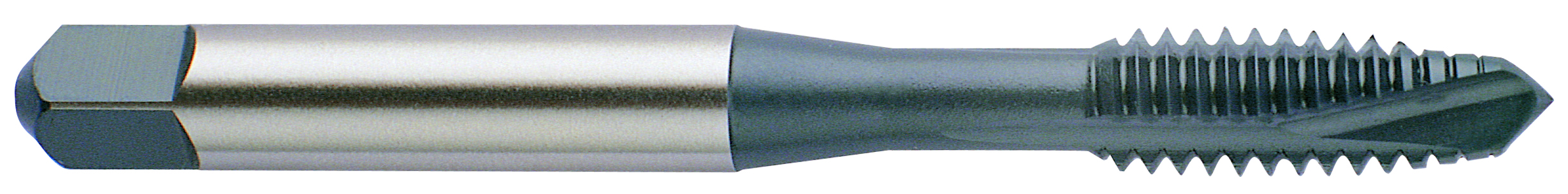

Picture of YG-1 K9343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

YG-1 K9343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated

Part Number: YG-K9343

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163430
Vendor: Sussex Tool and Supply
$6.70

Description

YG-1 K9343 No.10x32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Chamfer 4P-5P
