  • YG-1 K6676 M18-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

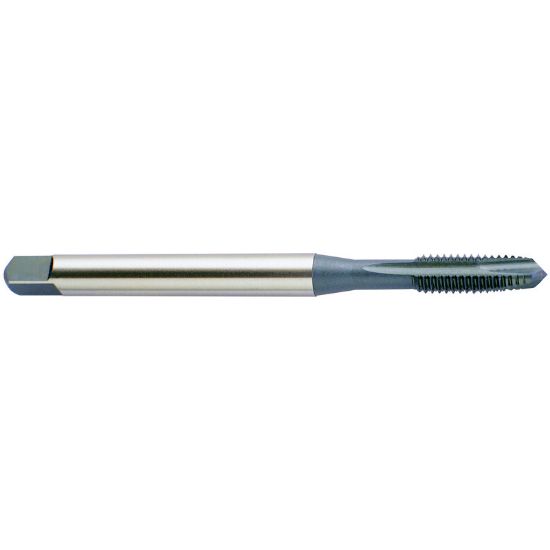

Picture of YG-1 K6676 M18-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6676 M18-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6676
Delivery date: 3-5 days
$65.43

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size M18
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard DINSI
Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Shank/Pilot Dia 0.4800 12.19MM
Length Type Standard
Flutes/Inserts 3
Thread Pitch 1.50MM
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Overall Len 4.3310 110.01MM
Tap Square 0.3600
Tap Chamfer 4P-5P
Thread Type Metric
Thread Limit D6
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
