  • YG-1 K6657 M18-2.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

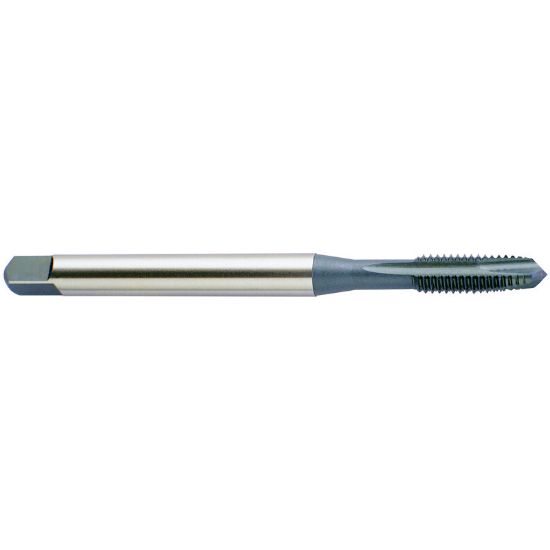

Picture of YG-1 K6657 M18-2.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6657 M18-2.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6657
Delivery date: 3-5 days
$65.43

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Dimension Standard DINSI
Thread Limit D7
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Overall Len 4.9210 124.99MM
Tap Square 0.3600
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Thread Size M18
Thread Pitch 2.50MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Type Plug
Shank/Pilot Dia 0.4800 12.19MM
Thread Type Metric
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
