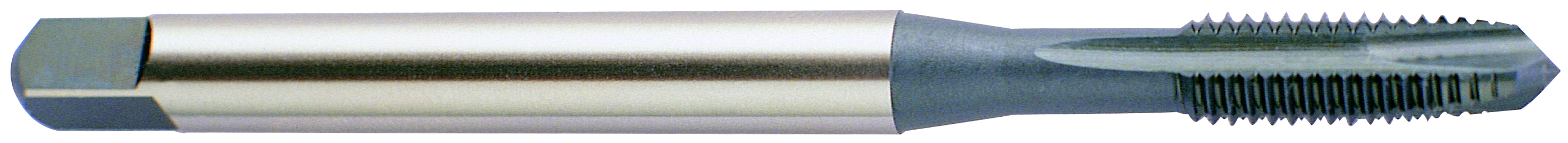

Picture of YG-1 K6657 M18-2.50mm Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6657 M18-2.50mm Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Part Number: YG-K6657
Looking for alternatives…
Find a drill for this tap M18 × 2.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1163404
Vendor: Sussex Tool and Supply
$92.70

Description

YG-1 K6657 M18x2.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick D7 Metric Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 4.9210 124.99MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 2.50MM
Thread Size M18
Tap Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Square 0.3600
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D7
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Coating Hardslick
Standards & Identification
Dimension Standard DINSI
