  • YG-1 K6607 M16-2.00MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

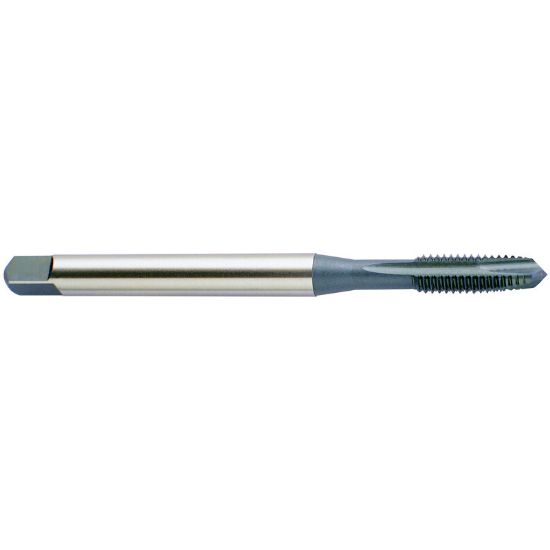

Picture of YG-1 K6607 M16-2.00MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6607 M16-2.00MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6607
Delivery date: 3-5 days
$44.80

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Tap Type Plug
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Tap Square 0.3600
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit D7
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Chamfer 4P-5P
Shank/Pilot Dia 0.4800 12.19MM
Thread Size M16
Dimension Standard DINSI
Length Type Standard
Thread Pitch 2.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
