  • YG-1 K6556 M14-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

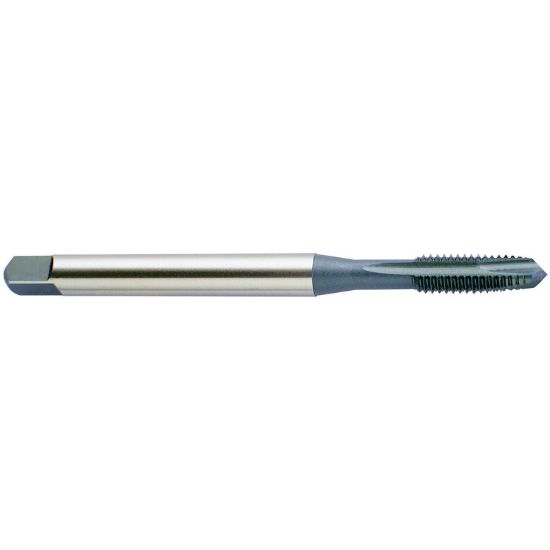

Picture of YG-1 K6556 M14-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6556 M14-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6556
Delivery date: 3-5 days
$41.92

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Size M14
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Type Metric
Thread Limit D6
Tap Type Plug
Dimension Standard DINSI
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Thread Pitch 1.50MM
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Chamfer 4P-5P
Flutes/Inserts 3
Tap Square 0.3220
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
