  • YG-1 K6365 M8-1.25MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

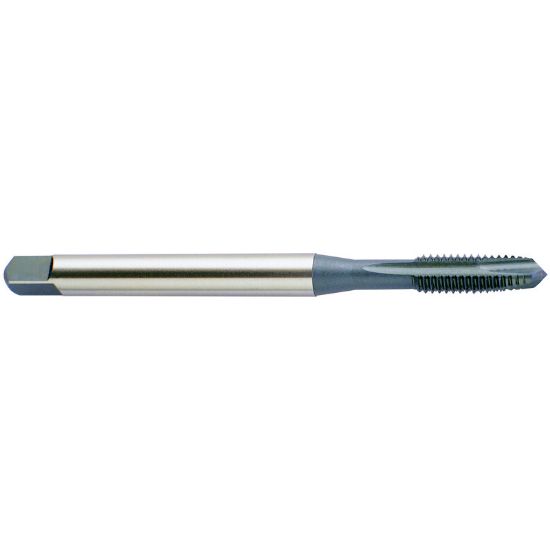

Picture of YG-1 K6365 M8-1.25MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6365 M8-1.25MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6365
Delivery date: 3-5 days
$20.08

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M8
Thread Type Metric
Tap Type Plug
Dimension Standard DINSI
Length Type Standard
Tap Square 0.2380
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Chamfer 4P-5P
Thread Pitch 1.25MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
