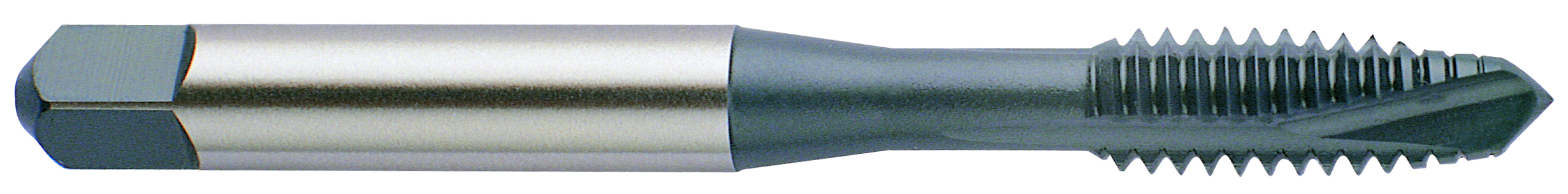

Picture of YG-1 J2543 7/16-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2543 7/16-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Part Number: YG-J2543

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1162931
Vendor: Sussex Tool and Supply
$25.99
YG-1 J2543 7/16"x20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick H3/GH3 NF/UNF/UNEF Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating Hardslick
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 4P-5P
