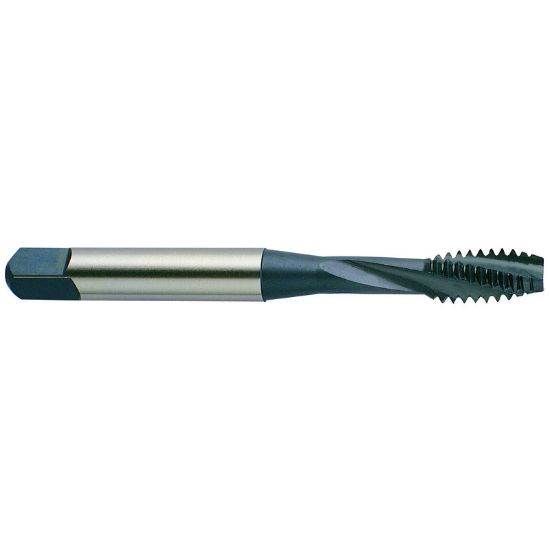

YG-1 H6464 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-H6464
Delivery date: 3-5 days
$18.60

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Tap Square 0.2380
Thread Pitch 24.00TPI
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Chamfer 2.0P-3.0P
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Thread Size 5/16"
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
