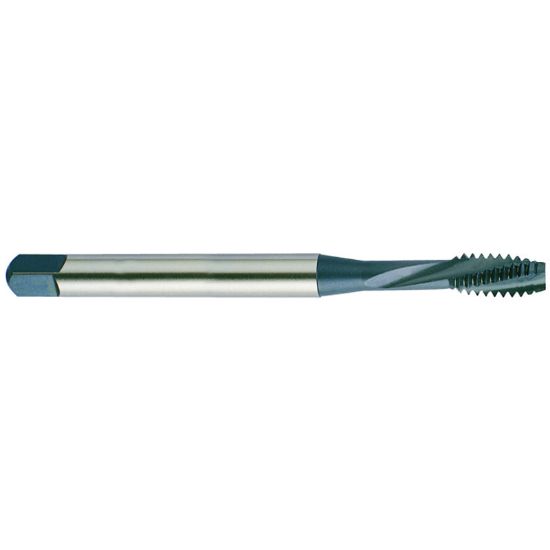

YG-1 H4523 7/16-14.00TPI Cut Spiral Point Plug 4P-5P P-HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-H4523
Delivery date: 3-5 days
$54.92

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard ANSI/6"
Overall Len 3.9370 100.00MM
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Shank/Pilot Dia 0.3230 8.20MM - P
Thread Pitch 14.00TPI
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Tap Square 0.2420
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
