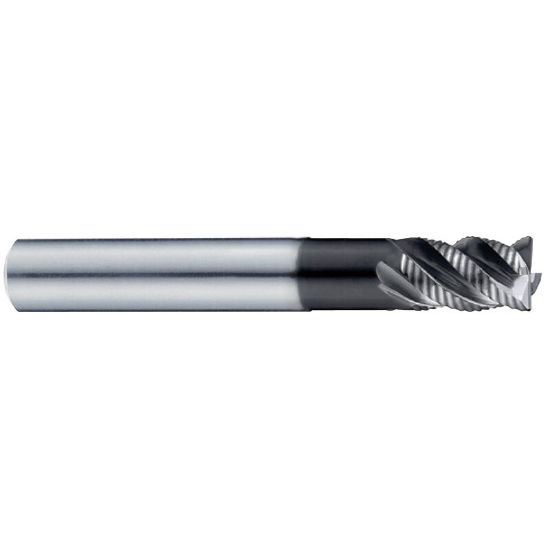

YG-1 G93040 DIA 5/8 SH 0.6250 LOC 0.7500 OAL 4.00 End Mill Carbide TiAlN Single End Corner Radius 0.0400 1.02MM X-SPEED End Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-G93040
Delivery date: 3-5 days
$150.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Side Milling, Face Milling, Slot Milling
Package Size 1
Coating TiAlN
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 2.0000 50.80MM
Length Type Standard / With Neck
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
Length Of Cut 0.7500 19.05MM
Cutter Style Carbide Bull Nose Rougher
Single/Double End Single End
Corner Radius 0.0400 1.02MM
Machine Side Connection Size 0.6250 15.88MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
