  • YG-1 G6375 M8-1.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Hardslick

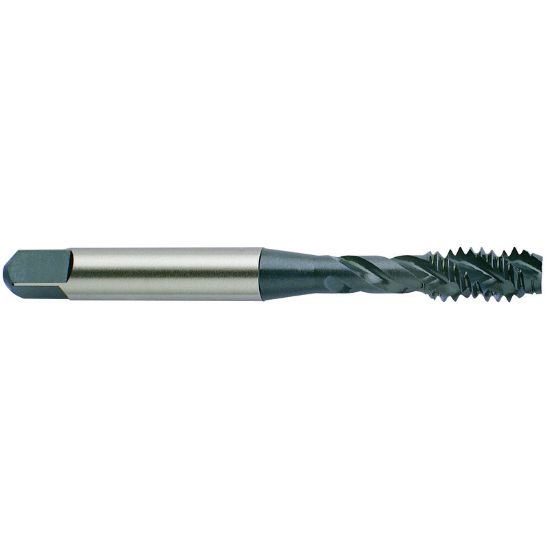

Picture of YG-1 G6375 M8-1.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Hardslick

YG-1 G6375 M8-1.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-G6375
Delivery date: 3-5 days
$19.39

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Bottom Tapping, Tapping
Coating Hardslick
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Dimension Standard ANSI/ANSI
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Thread Size M8
Thread Type Metric
Tap Square 0.2380
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
