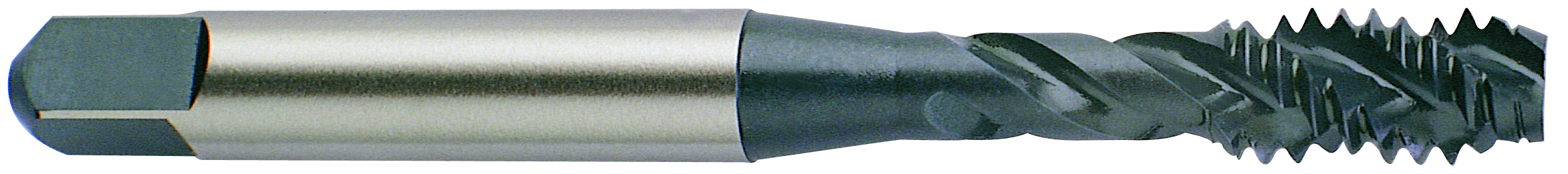

Picture of YG-1 G4284 M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

YG-1 G4284 M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

Part Number: YG-G4284
Looking for alternatives…
Find a drill for this tap M5 × 0.80MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1162210
Vendor: Sussex Tool and Supply
$9.09

Description

YG-1 G4284 M5x0.80MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Performance & Capacity
Cut Rating <25HRC Steel, Stainless Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard ANSI/ANSI
